Home > PHILIPS LED INDOOR LIGHT > PHILIPS PANEL > PHILIPS RC168

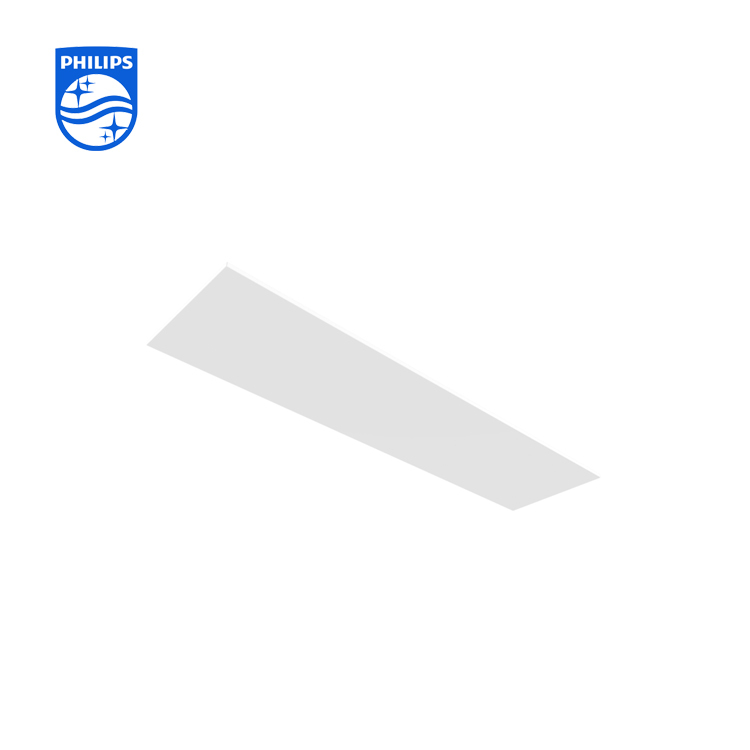

PHILIPS RC168 LED40/940 W30L120 PSU REC 9114 019 06104

Description

110 lm/W

System Efficacy · Class I Energy

IP40 / IP20

Luminous Surface / Whole Luminaire

30,000 hrs

Lifespan L70B50 @ Ta 25°C

4,140 lm

Luminous Flux (36W)

Frameless Series 100% Luminous Surface 4000K Neutral White

Philips’ frameless back-lit LED panel — 100% full-screen luminous surface, 110 lm/W system efficacy at Class I energy level, CRI 90 standard, patented one-piece ultrasonic + hot-riveting welded structure. RG0 blue-light exempt, flicker-free.

Philips’ 4,140-lumen frameless back-lit LED panel — 36W, 4000K Neutral White, 110 lm/W (Class I energy), 100% full-screen luminous surface, CRI 90, RG0 blue-light exempt, flicker-free (PstLM < 0.5 / SVM < 0.4 / MD < 3.2%). IP40 luminous surface / IP20 whole luminaire. 30,000 hr L70/B50 lifespan. 298×1198 mm recessed t-bar ceiling corridors, open-plan office perimeters and reception areas.

PHILIPS RC168 LED40/940 W30L120 PSU REC 9114 019 06104

Name: PHILIPS RC168 LED40/940 W30L120 PSU REC 9114 019 06104
Brand: Honnex Lighting
SKU: 04572
Availability: InStock
Rating: 5 (1 reviews)

36W 4000K Neutral White · Frameless Back-Lit · Recessed12NC: 9114 019 06104

Color Temperature

CCTs across the RC168 range — 4000K (NW) and 5700K (CW) standard. ETO options: 5000K / 6500K. This model: 4000K (NW). All 8 standard SKUs in stock — mixed orders welcome.

Request Bulk Quote

✓ Authorized Philips Distributor ✓ Large Inventory · Fast Shipping ✓ Worldwide Delivery ✓ CCC · China Energy Label

Gallery

Product Images

View the RC168 36W / 4000K from every angle.

Designed for the modern office

100% full-screen luminous surface. Patented one-piece welding. CRI 90. RG0 blue-light exempt. Flicker-free (PstLM < 0.5 / SVM < 0.4 / MD < 3.2%). 38 mm slim body.

100% Frameless Luminous Surface

Innovative one-piece frameless design. The luminous surface covers 100% of the panel — ~27% larger emitting area than a standard ~22 mm framed panel. Visually borderless ceiling finish.

110 lm/W · Class I Energy

System efficacy 110 lm/W at 36 W / 4,140 lm — meets China Class I energy efficiency. CRI ≥ 90 with SDCM ≤ 5 for true-color office illumination. UGR ≤ 26 (OC diffuser version: UGR < 19).

Patented Welding Structure

Innovative one-piece molding with full-automatic ultrasonic welding plus hot-riveting. Eliminates visible frame joints, keeping the panel flat and seamless at 38 mm slim.

RG0 · Flicker-Free

Blue-light hazard RG0 (exempt). Flicker suppressed to PstLM < 0.5 / SVM < 0.4 / MD < 3.2% — well inside office-grade visual-comfort limits. Safe for long-hour office, classroom and healthcare work.

Three Mounting Methods

CPC integrated ceiling (standard), recessed into t-bar / plaster ceiling (standard), and suspension mounting (ETO option). This 30×120 mm version suits recessed ceilings.

Multiple Control & Diffuser Options

Standard PSU fixed output. ETO options: PSD DALI dimming, TWH tunable CCT 3000–5000K, FL Office Flex, FL TWH Office Flex + tunable CCT. Standard non-OC diffuser; OC micro-prism diffuser for UGR < 19.

Performance

Technical Specifications — 36W / 4000K

Exact specifications for the Philips RC168 LED40/940 W30L120 PSU REC (9114 019 06104).

System Power

36W

Luminous Flux

4,140 lm

System Efficacy

110 lm/W · China Class I Energy

Color Temperature

4000K (Neutral White)

CRI / SDCM

CRI ≥ 90 · SDCM ≤ 5

UGR

≤ 26 (OC diffuser version: < 19)

Blue-Light Hazard

RG0 (exempt)

Flicker / Strobo

PstLM < 0.5 · SVM < 0.4 · MD < 3.2%

THD

≤ 20%

Input Voltage

220V – 240V AC, 50/60Hz

Power Factor

> 0.9

Surge Protection

L-N: 1KV

Insulation Class

Class II

Control (Standard)

PSU fixed output · ETO: PSD DALI / TWH tunable CCT / FL Office Flex / FL TWH

IP / IK Rating

Luminous surface IP40 · Whole luminaire IP20 · IK02

Mounting

Recessed

Dimensions (L × W × H)

298×1198×38 mm

Operating Temperature

-20°C to +40°C (Ta 25°C)

Lifespan

30,000 hrs L70/B50 @ Ta 25°C

Packaging

6 pcs per carton

Certifications

CCC · China Energy Label (Class I)

How to order

Ordering Guide — 8 SKUs

Complete RC168 standard family with 12NC ordering codes. Your selected model is highlighted below.

12NC	Description	Watts	CCT	Size (mm)	Mounting	Qty/Ctn
9114 019 06097	RC168 LED40/940 W60L60 PSU CPC	36W	4000K (NW)	60×60×38mm	Integrated Ceiling (CPC)	6
9114 019 06098	RC168 LED40/957 W60L60 PSU CPC	36W	5700K (CW)	60×60×38mm	Integrated Ceiling (CPC)	6
9114 019 06099	RC168 LED40/940 W30L120 PSU CPC	36W	4000K (NW)	30×120×38mm	Integrated Ceiling (CPC)	6
9114 019 06101	RC168 LED40/957 W30L120 PSU CPC	36W	5700K (CW)	30×120×38mm	Integrated Ceiling (CPC)	6
9114 019 06102	RC168 LED40/940 W60L60 PSU REC	36W	4000K (NW)	60×60×38mm	Recessed	6
9114 019 06103	RC168 LED40/957 W60L60 PSU REC	36W	5700K (CW)	60×60×38mm	Recessed	6
9114 019 06104	RC168 LED40/940 W30L120 PSU REC	36W	4000K (NW)	30×120×38mm	Recessed	6
9114 019 06105	RC168 LED40/957 W30L120 PSU REC	36W	5700K (CW)	30×120×38mm	Recessed	6

Selected Variant

9114 019 06104 RC168 LED40/940 W30L120 PSU REC Qty / Ctn: 6

Legend: NW=4000K (Neutral White) | CW=5700K (Cool White) | CPC=Integrated Ceiling (600×600 / 300×1200 mm) | REC=Recessed (597×597 / 298×1198 mm) | PSU=fixed output | ETO options: 5000K / 6500K, suspension mount, OC diffuser (UGR < 19), PSD / TWH / FL / FL TWH controls — MOQ on request, contact our sales team

Looking for the complete overview? See the RC168 Frameless LED Panel series page →

Evolution

Standard Framed Panel → RC168 — What Changed

Same office / commercial ceiling lighting. Re-engineered with a frameless luminous surface and patented welding for a noticeably cleaner ceiling finish.

Standard Framed Panel

~22 mm frame reduces visible luminous area
~73% luminous surface ratio
CRI ≥ 80 standard office panels
Conventional mechanical assembly (visible frame joints)
System efficacy ~80–90 lm/W (Class II / III energy)
Standard flicker performance

→

RC168 Frameless

100% full-screen luminous surface — ~27% larger emitting area
CRI ≥ 90 — true-color office illumination
110 lm/W · Class I energy — highest tier of China energy label
Patented ultrasonic + hot-riveting welding — one-piece frameless body
RG0 blue-light exempt — safer for long-hour work
PstLM < 0.5 / SVM < 0.4 / MD < 3.2% — flicker-free office-grade comfort

The full range

All 8 Configurations

Compare the complete RC168 family — color temperatures and luminaire dimensions for every configuration.

Color Temperatures Available — 36W

4000K Neutral White5700K Cool White

Luminaire Dimensions (L × W × H in mm)

36W

60×60×38 mm

36W

30×120×38 mm

36W

60×60×38 mm

36W

30×120×38 mm

Common questions

FAQ — 36W / 4000K

What is the 36W / 4000K RC168 best for?

The RC168 is a frameless back-lit LED panel with 100% full-screen luminous surface and 110 lm/W system efficacy — Class I energy efficiency. The 36W / 4000K Recessed version suits 298×1198 mm recessed t-bar ceiling corridors, open-plan office perimeters and reception areas. CRI 90 delivers true-color office illumination, IP40 (luminous surface) / IP20 (whole luminaire) protects against dust and contact, and RG0 blue-light exempt with PstLM < 0.5 / SVM < 0.4 / MD < 3.2% flicker-free performance keeps long-hour work easy on the eyes. If you need the alternate 30×120 Recessed format, the 5700K (CW) version is available in the same 36W / 4,140 lm configuration.

What are the dimensions of the 30×120 RC168 Recessed?

The RC168 30×120 recessed panel measures 298×1198×38 mm (L × W × H). The 300×1200 (CPC) / 298×1198 (Recessed) outer dimension matches the t-bar / recessed grid; the integrated frameless diffuser and patented ultrasonic + hot-riveting welded structure keep the back-plate surface flat and seamless.

What electrical and surge specifications does this RC168 have?

All RC168 standard SKUs run on 220–240V AC, 50/60 Hz, with PSU fixed-output driver (DALI / TWH / FL versions available on request). Power factor > 0.9, Class II insulation, L-N 1 KV surge protection, THD ≤ 20%. IP40 luminous surface / IP20 whole luminaire, IK02 impact resistance. Operating temperature -20°C to +40°C (Ta 25°C). 30,000 hr L70/B50 lifespan at Ta 25°C. CCC + China energy-label certified.

What mounting methods are available for the RC168 W30L120?

The RC168 supports three installation methods: CPC integrated ceiling (standard), recessed mount into a t-bar / plaster ceiling (standard), and suspension mounting (ETO option, suspension hardware not supplied). This model is the Recessed version for 30×120 mm ceiling openings. Recessed SKUs fit standard 600×600 or 300×1200 mm lay-in grid ceilings; CPC SKUs drop into CPC ceiling modules of the same nominal size.

How does the RC168 differ from a standard framed LED panel?

The RC168 uses an innovative one-piece frameless design with patented ultrasonic welding + hot-riveting. The luminous surface covers 100% of the panel (vs ~73% on a standard ~22 mm framed panel — a ~27% larger emitting area). System efficacy reaches 110 lm/W at Class I energy level, CRI 90 standard, and flicker is suppressed to PstLM < 0.5 / SVM < 0.4 / MD < 3.2%. Blue-light hazard RG0 (exempt). The 38 mm slim housing matches standard CPC and recessed grids.

Can I order the 36W / 4000K RC168 in bulk?

Yes. All 8 RC168 standard SKUs are in stock, each shipped 6 pcs per master carton. ETO options (5000K / 6500K fixed CCT, micro-prism OC diffuser for UGR < 19, suspension mounting, and PSD / TWH / FL / FL TWH control protocols) are case-by-case — MOQ on request. Mixed orders welcome — contact our sales team for a quotation.
