Benefits •High reliability underpinned by 5 year warranty • Future-proof flexibility - application-oriented operating windows enable LED generation and complexity management •Compatibility - can also be used for other manufacturers' modules or OEMs' own PCB designs • Flicker and noise free dimming with all Touch and DALI LED drivers due to amplitude dimming (AM)
Features • Simpler approval process and easy design-in • Operating windows - output current configurable via DALI or SimpleSet by means of Philips MultiOne software or via a resistor (LEDset) •Reduced ripple current and thermal derating for increased reliability • Power ratings: 36W, 65W and 75W •DALI dimmable & programmable, 1-10V dimmable, and fixed-output versions
Application • Offices • Industry • Supermarkets / Retail
929001503606
Xitanium 36W 0.3-1A 54V TD 230V
929001503706

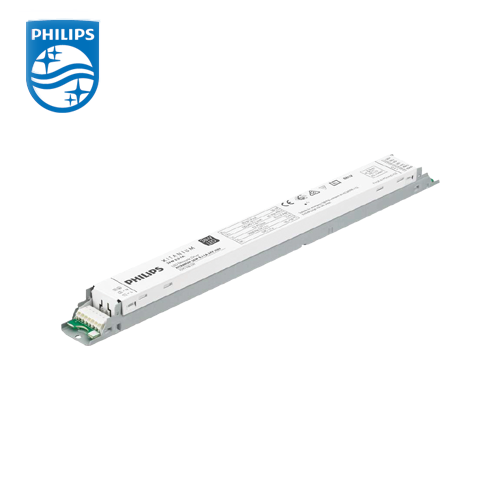

Xitanium 75W 0.7-2A 54V TD 230V
929000852103
Xitanium 75W 0.12-0.4A 215V TD 230V
DETAIL DATA Output voltage: 27 to 54 Vdc Output current: 0.7 A - 2 A Output power: 21 to 75 W Pieces per box: 24 Driver lifetime: 50,000 hours Control method: Corridor Mode, DALI, Touch & Dim (TD)
